PIN Mode

pos.titank12.com

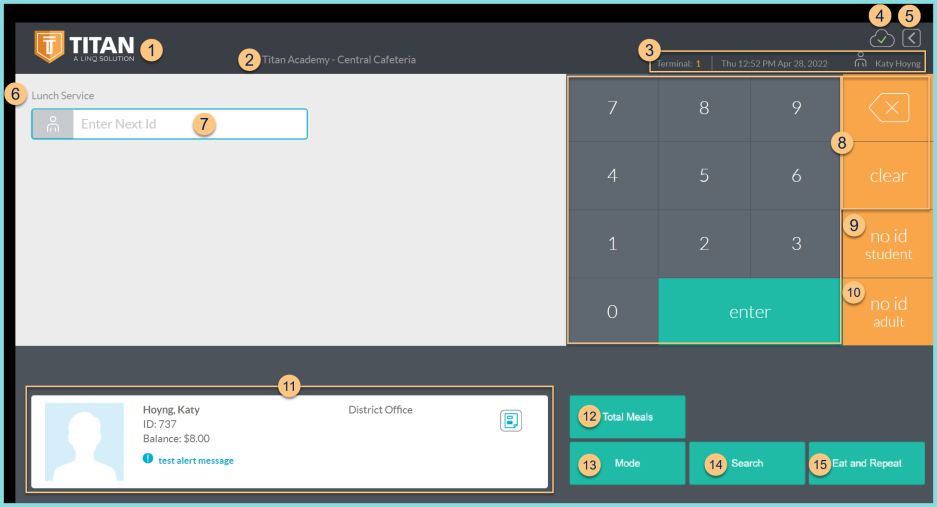

Screenshot of the POD device in PIN mode as described on this page.

  1. TITAN Logo - click to enter full screen mode

  2. Notice the District Name and Cafeteria Name

  3. Notice the Terminal Number, Date, Time, and Cashier Name

  4. Cloud Icon - notice the status of the cloud icon
    Green Check - connected to cloud
    Gray Dash - not connected to cloud
    Red Number - number of transactions saved in browser for communication when connection returns

  5. < - click to return to the previous screen

  6. Notice the selected Serving Session.
    Date (not pictured, changed date only) - notice the date if different than today

  7. Enter Next Id - enter the next identifier or POS ID keypad, keyboard, touchscreen, or barcode scanner to be redirected to serving screen if eat and repeat is not enabled

  8. no id student - click to serve a No ID student (paid eligibility)

  9. no id adult - click to serve a No ID non-student

  10. Keyboard - use the on screen keyboard to type in lieu of a physical keyboard

  11. Notice the Previous Transaction information including the person's photo, name, ID or POS ID, Balance, Assigned or Enrolled Building, Grade (students only), and alert message if applicable. Click the Receipt icon to return to the serving screen to re-process or void the transaction.

  12. Total Meals - click to view total meals served

  13. Mode - click to change the serving mode

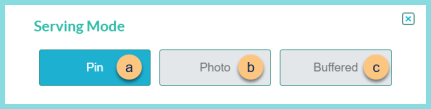

    Screenshot of the Serving Mode modal as described on this page.

    1. Pin - click to select pin mode. Enter identifier or PIN via keypad, keyboard, or barcode scanner to serve

    2. Photo - click to select photo mode. Click the person's photo to serve.

    3. Buffered - click to select buffered mode. Enter identifier or PIN via left/right keypad or barcode scanner. Students will line up on either side of screen. Click person's photo to serve.

  14. Search - click to be redirected to the search screen

  15. Eat and Repeat - click to toggle Eat and Repeat status. Note: This is only visible if Eat and Repeat is enabled.
    Green - Eat and Repeat is ON (person is served default item without being redirected to serving screen)
    Orange - Eat and Repeat is PAUSED for next person
    Red - Eat and Repeat is OFF
